What is a good way to solder wires that will last for years? I bought a boat from
a guy whose day job was building electronics that orbit the earth. This is how
he soldered wire.
Amazon affiliate links are used in this post. As an Amazon Associate I earn from qualifying purchases.
Step-by-step
In this example, I’ll walk through how I would solder wires for use in a wet
environment. To get started I have stripped about half an inch of wire from
each of the brown wires. The Klien wire strippers are the best and mechanically
one of the most interesting tools that I own.

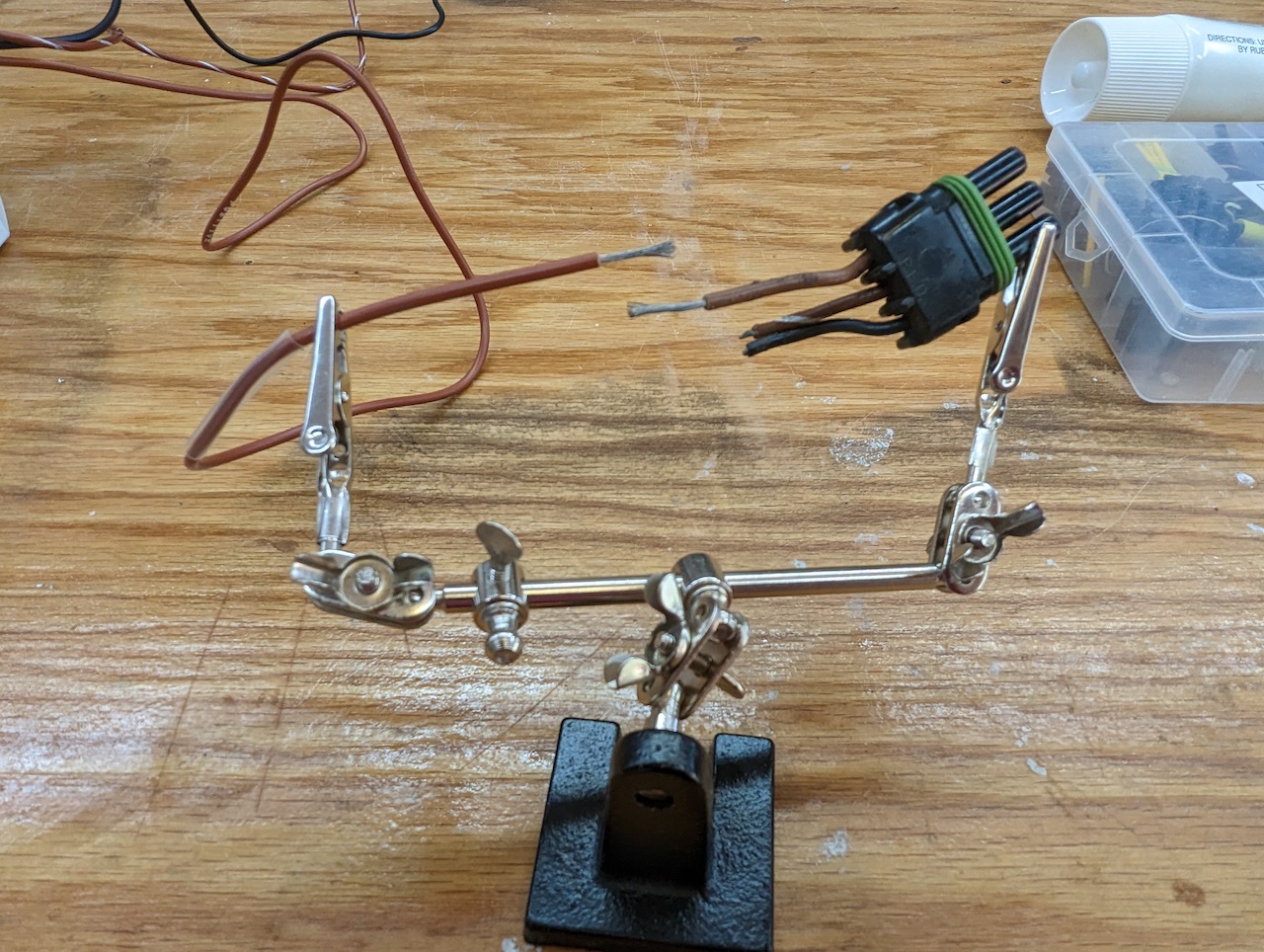

The Helping Hands are used to hold wires in place. I’ve used larger versions
of this type of helper device, but I have found I only need two extra hands.
You can spend a lot more but this is all you will need.
Helping Hands are a big help for more complicated tasks
Next you twist the wires together, without making any lumps, get has much
contact between the two wires as possible. Make sure no wire ends are sticking
out, they can puncture the shrink wrap installed later

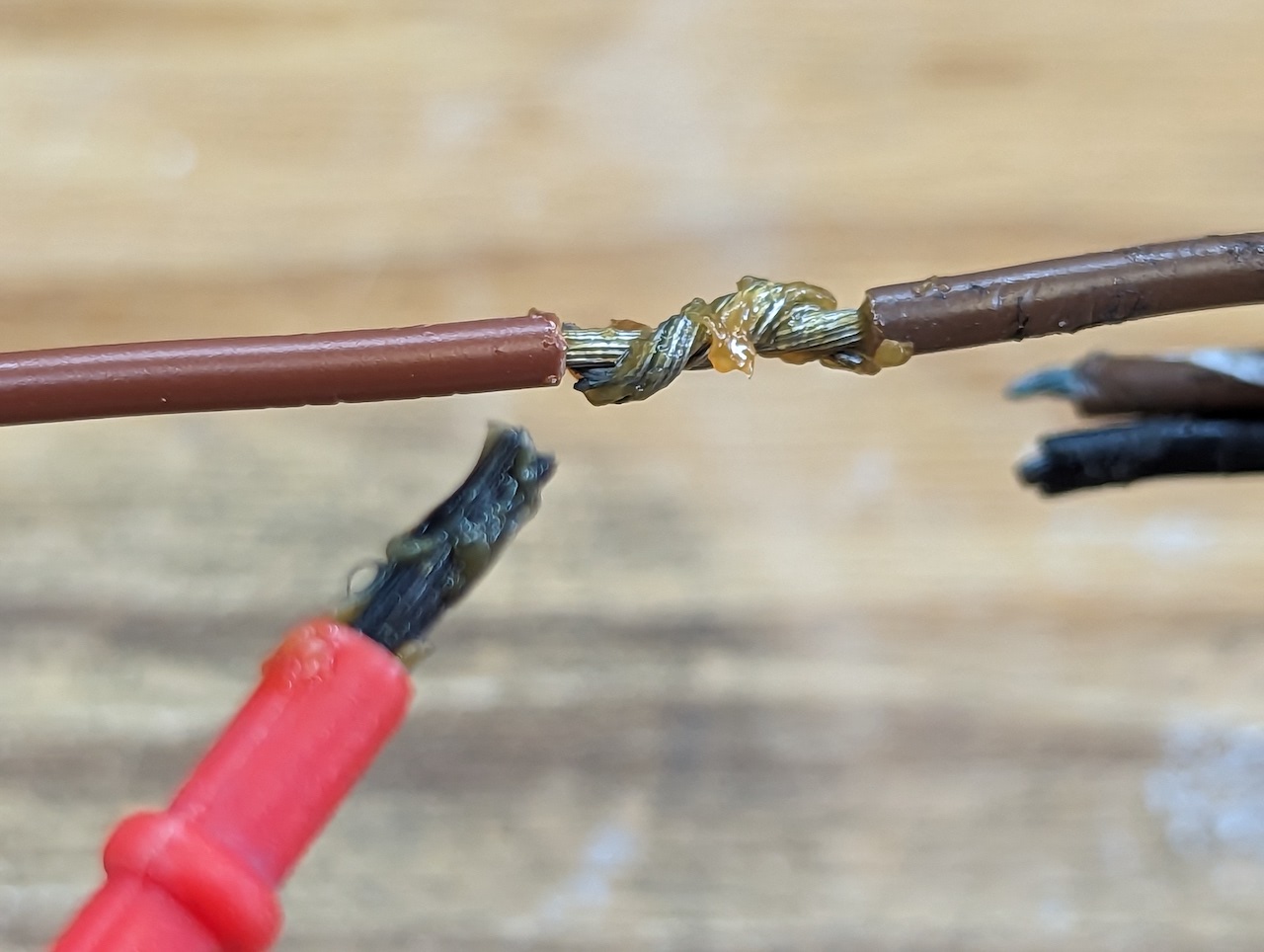

Now apply Rosin Soldering Flux to make the next step easier.

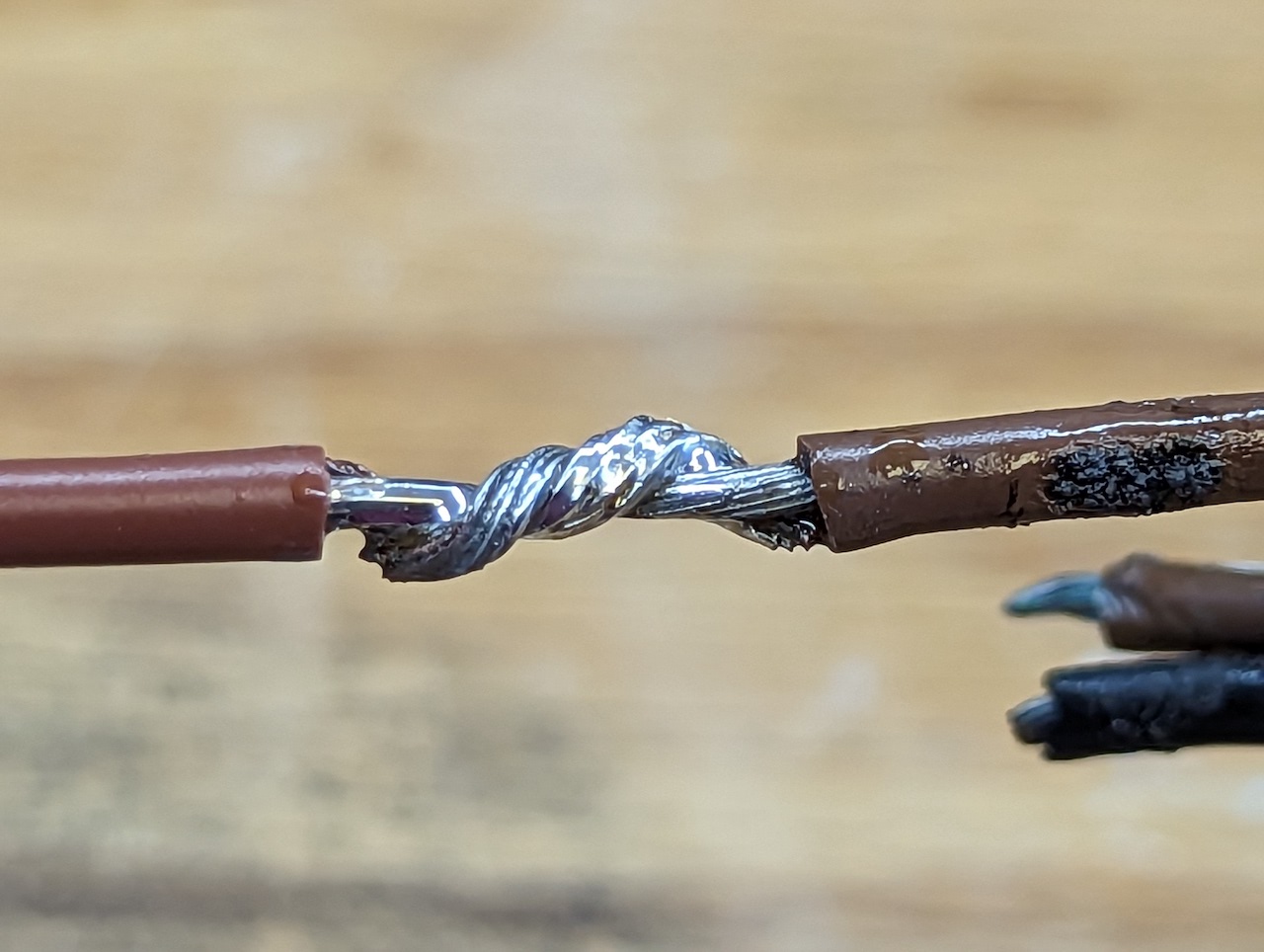

I solder the wire using lead solder and a
[butane soldering iron](#butane soldering iron). You can see in the picture that
the wire casing is a bit charred but that was not by me, this wire was used in
a rather harsh environment. I think it was riding on an exhaust pipe for a while.
I’ll cover most of the char with shrink wrap.

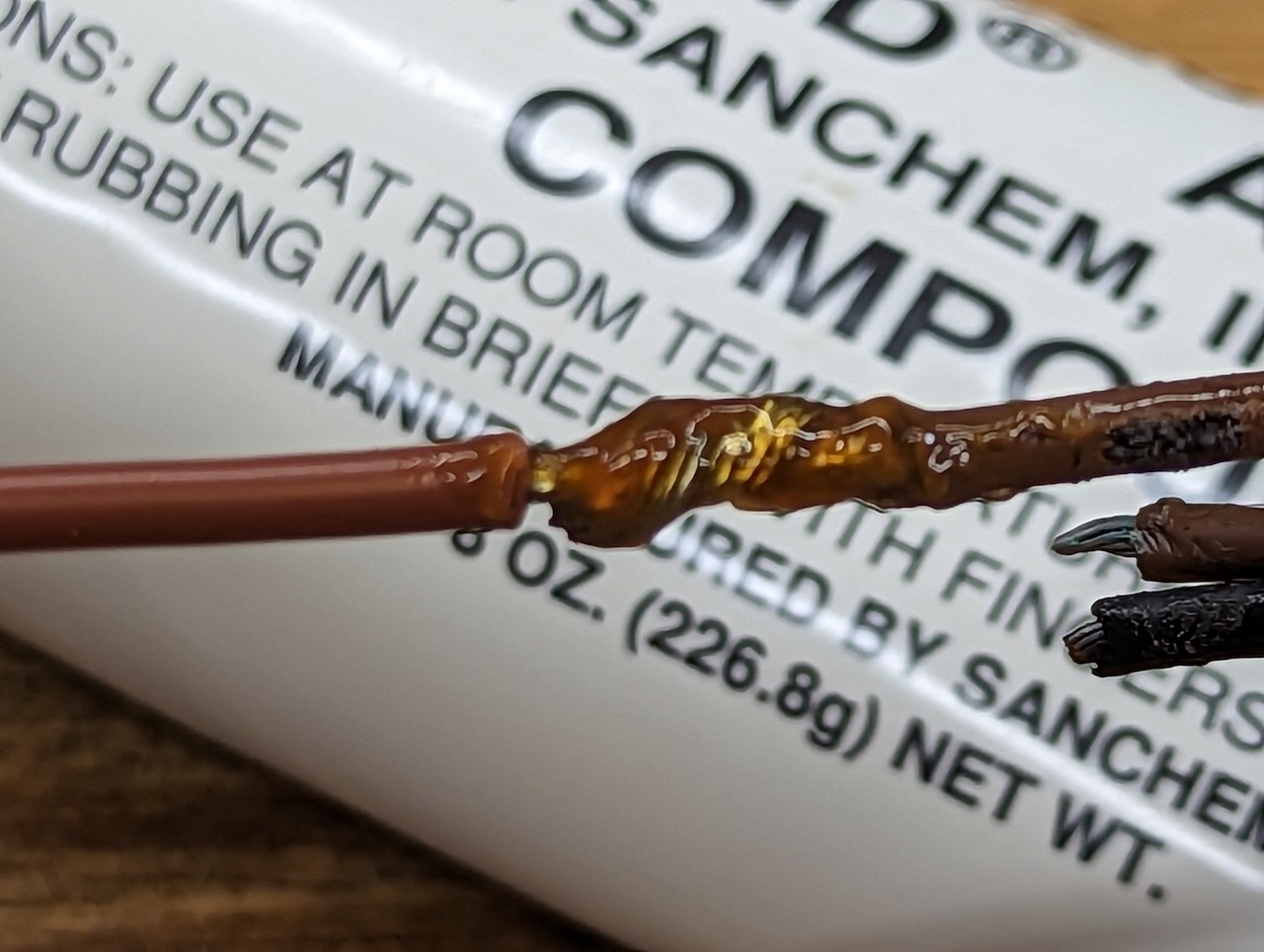

Next I protect the exposed wire with No-OX-ID special grease
This improves conductivity and protects the wire from exposure to water and humidity.

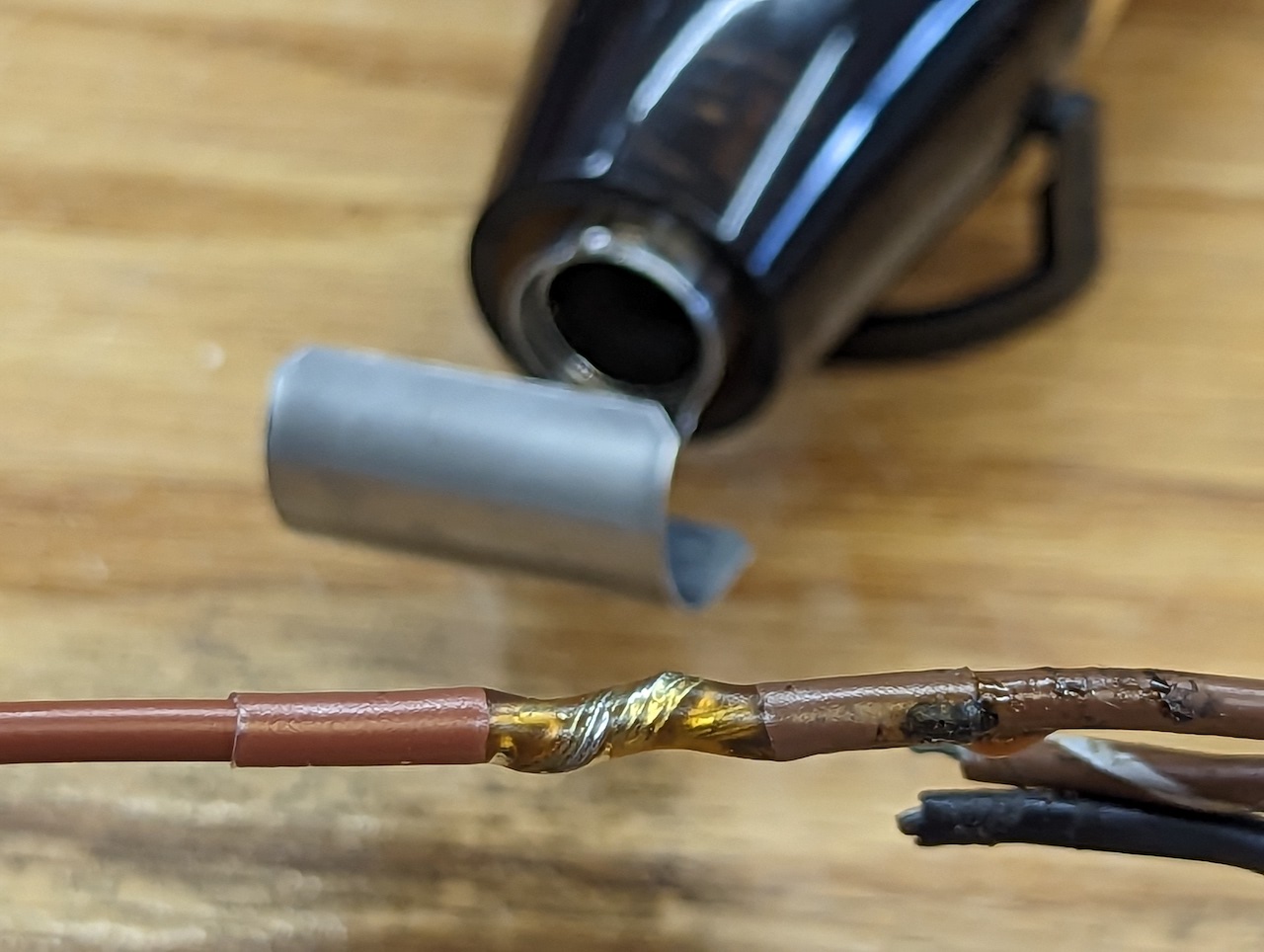

Finally I slide the heat shrink over the soldered wire and
apply heat with a heat gun. Note how well the clear shrink tube
shows the grease protecting the solder joint. Unless you are showing polarity with
red or black shrink tube, or need some other color scheme, use clear tubing.
Summary
It is nice getting things done, with the right tools, knowing that you probably
won’t have to mess with it again for a long time. The connection between these
two wires that should last for years.
Here is a good video on the whole process.
Tools Used
Klien Wire Strippers
These wire strippers from Klein are a bit expensive, but every splice is perfect.
You don’t want to nip any strands of wire, each strand counts.
View on Amazon
Helping Hands
The Helping Hands are used to hold wires in place. I’ve used larger versions
of this type of helper device, but I have found I only need two extra hands.
You can spend a lot more but this is all you will need.
View on Amazon
Rosin Soldering Flux
I’ll admit, I have not used this but it has great ratings. Buy this one time
and it will last forever. You only use a little bit at a time.
View on Amazon
Lead Solder
I only use solder with lead in it. The lead-free solder might be OK for some
applications, but solder connections don’t look as good to me.
View on Amazon
Butane Soldering Iron
These soldering irons are great. My first one probably lasted 15 years.
They get nice and hot very fast and you don’t need to drag an extension cord
around you. You can also use it as a small torch.
View on Amazon
No-OX-ID Special Grease Compound
This grese will protect your wire from corrosion. Good stuff, buy it, use it.
View on Amazon
Heat Shrink
This is a nice collection and inexpensive tool. The stuff shrinks nicely.
View on Amazon
Mini Heat Gun
This unit is small enough to fit in my toolbag and gets the job done.
View on Amazon
