Joroto X4S with Zwift, QZ

General
, ,
1

The big picture is to exercise on the Joroto X4S stationary bike, connected to QZ on the Google Pixel 6 phone, while displaying the ride with Zwift on a Samsung S10 Ultra and log training sessions.

QZ version 2.18.9 beta

  • Tests 1
    • First I cleared the data to start the app from scratch. There is a new setup that sets: age, weight, sex, bike, and heart-monitor.
    • The Wahoo heart rate monitor does not consistently show up
    • Tile tile metrics display is still all zeros
  • Test 2
    • In settings, the setup did not configure the Bike and Belt, I set this manually
      • FTMS Bike: JOROTO-3132
      • Heart Belt Name: TICKR COC9
    • The tile metrics display is still all zeros

From the log file debug-Wed_Dec_11_17_29_47_2024.log

  • Wed Dec 11 17:29:48 2024 1733956188183 Debug: …/src/main.cpp int main(int, char **) “heart_rate_belt_name” QVariant(QString, “TICKR C0C9”)
  • 74 Wed Dec 11 17:29:48 2024 1733956188074 Debug: …/src/main.cpp int main(int, char **) “filter_device” QVariant(QString, “JOROTO-3132”)
  • 857 Wed Dec 11 17:29:51 2024 1733956191440 Debug: Device found: “JOROTO-3132” “E2:00:00:00:0C:3C” isLeScanResult: true Manufacturer data size: 0
  • 911 Wed Dec 11 17:29:51 2024 1733956191641 Debug: …/src/devices/bluetooth.cpp void bluetooth::debug(const QString &) “deviceUpdated JOROTO-3132 \u0001”
    • 986, 988, 1008, 1016, 1059, 1052 (many more, 1 sec apart)
  • 1178 Wed Dec 11 17:30:00 2024 1733956200900 Debug: Device found: “JOROTO-3132” “E2:00:00:00:0C:3C” isLeScanResult: true Manufacturer data size: 0
  • 680 Wed Dec 11 17:29:50 2024 1733956190527 Warning: qrc:/ChartFooterInnerJS.qml qrc:/ChartFooterInnerJS.qml:17: ReferenceError: rootItem is not defined
  • 681 Wed Dec 11 17:29:50 2024 1733956190530 Warning: qrc:/HomeForm.ui.qml qrc:/HomeForm.ui.qml:61: ReferenceError: rootItem is not defined
  • 828 Wed Dec 11 17:29:51 2024 1733956191219 Warning: qrc:/Home.qml qrc:/Home.qml:158: ReferenceError: appModel is not defined

QZ version 2.16.66

  • I’ve bought the QZ app for a Google Pixel 6 running Android 14. I’m able to connect to a Wahoo heart rate monitor and a Joroto X4S stationary bike, but the tile display shows all zero except for the heart rate. From the snapshot you can see the heart bpm and JOROTO-3132 found. The app is version 2.16.66.
  • In the app, all defaults except:
    • HeartRate service outside FTMS: on
    • Heart Belt Name: TICKR C0C9
    • Bike Options, FTMS Bike: JOROTO-3132
  • I’ve also run QZ on a Samsung S10 Ultra with the same result.
  • The plan is to run Zwift on the tablet but thus far I can’t get good data from the Joroto bike.

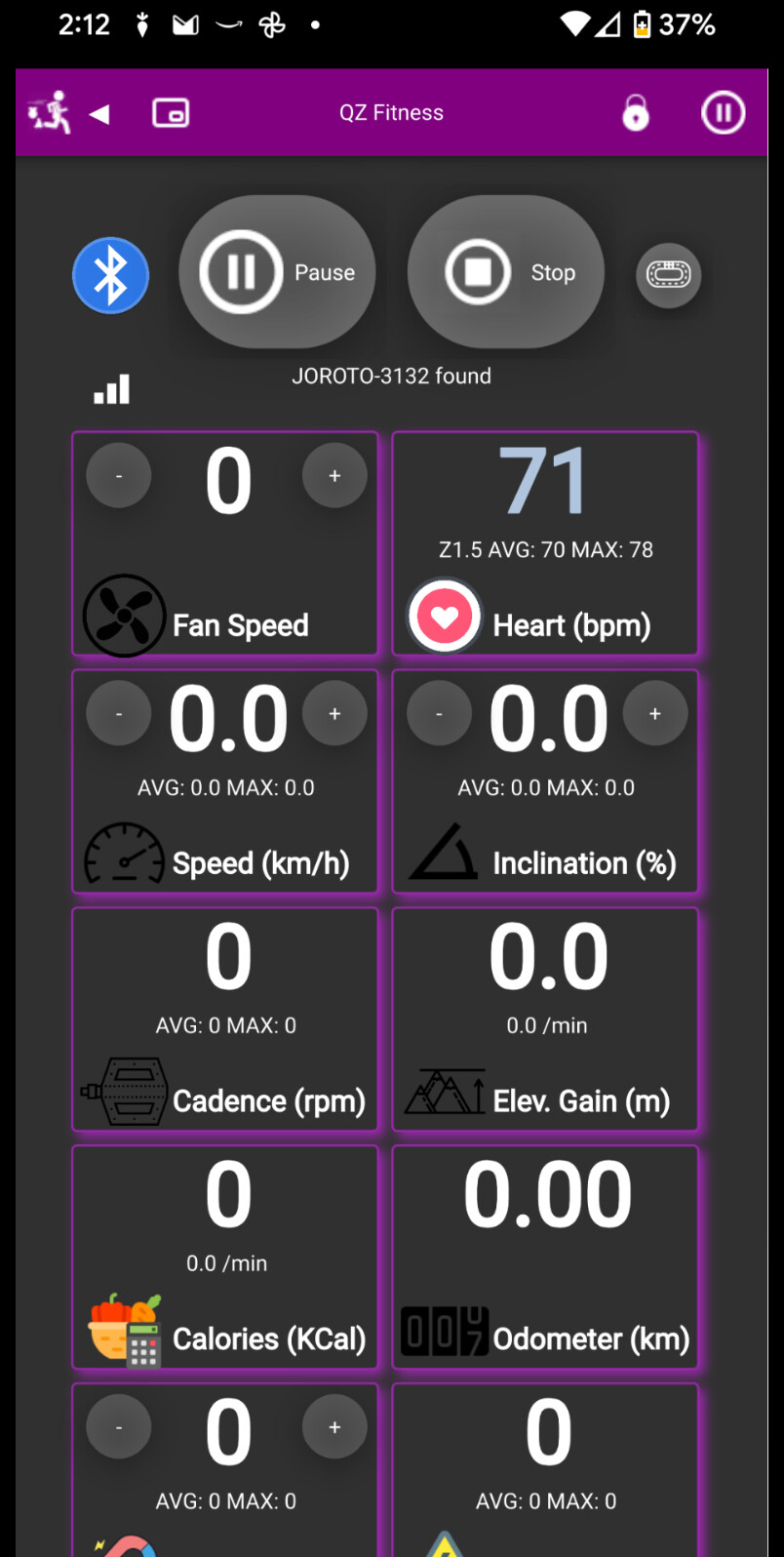

  • This image shows the QZ interface, with a heart-rate and JOROTO-3132 found
    image804×1596 163 KB
